In high-performance industries such as coatings, inks, pharmaceuticals, advanced ceramics, battery materials, and nanotechnology, particle size reduction is not merely a mechanical step—it is a precision-controlled engineering process. Achieving submicron or nanometer-scale dispersion while maintaining throughput, thermal control, and operational stability requires advanced milling architecture.

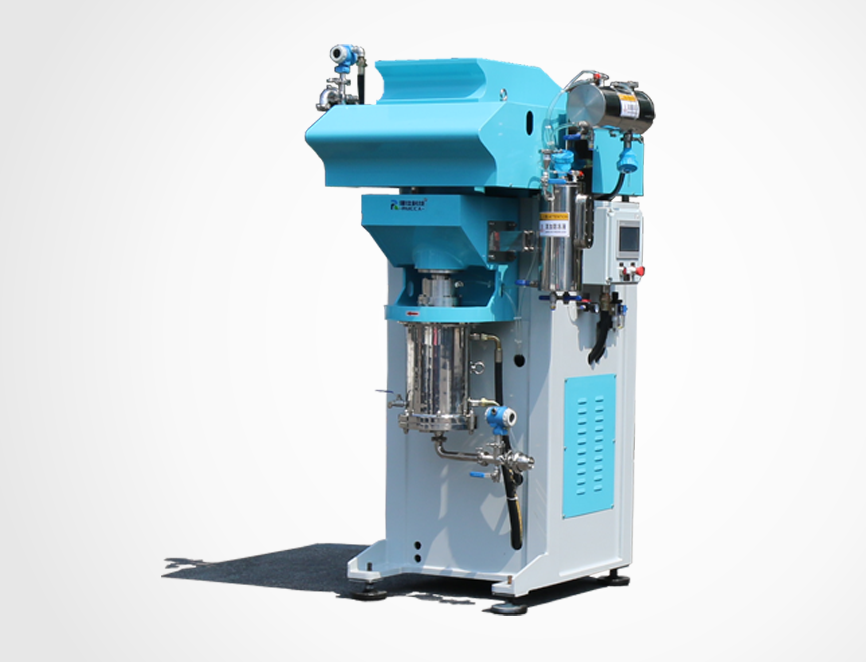

The UM high energy vertical bead mill represents a next-generation solution engineered to deliver exceptional energy density, process efficiency, and intelligent automation in a compact footprint. Developed by Rucca, a manufacturer recognized for high-shear and dispersion technologies, the UM series integrates structural optimization with process intelligence, enabling manufacturers to significantly improve grinding performance while reducing spatial and energy costs.

1. High Energy Density: Engineering for Maximum Impact Efficiency

At the core of the UM high energy vertical bead mill lies its high energy density milling chamber. Unlike conventional horizontal mills that rely on extended chamber length for energy transfer, the UM design concentrates energy within a vertically optimized grinding zone.

Key Engineering Advantages:

• Increased bead collision frequency

• Optimized shear and impact force distribution

• Reduced dead zones within the chamber

• Enhanced particle breakage kinetics

Higher energy density directly translates to:

• Faster particle size reduction

• Narrower particle size distribution (PSD)

• Reduced residence time

• Improved dispersion uniformity

For industries requiring ultra-fine grinding—such as lithium battery cathode materials or pigment concentrates—this energy efficiency becomes a critical competitive advantage.

2. Internal Media Recirculation: Optimized Grinding Dynamics

The UM mill incorporates an internal media recirculation system, a structural innovation that improves grinding media utilization and eliminates inefficient bead stagnation.

Why It Matters:

Traditional mills often suffer from uneven bead distribution and localized wear. The internal recirculation mechanism ensures:

• Continuous redistribution of grinding media

• Consistent energy transfer across the entire chamber

• Lower media wear rate

• Reduced contamination risk

This system enhances operational stability, particularly during long continuous production cycles, where uniform grinding performance is essential.

3. High Flow Rate Product Recirculation: Throughput Without Compromise

The UM high energy vertical bead mill is engineered for high flow rate product recirculation, allowing manufacturers to maintain production capacity while achieving fine particle size targets.

Process Benefits:

• Increased material throughput

• Improved heat dissipation due to dynamic circulation

• Greater control over final particle size via adjustable pass cycles

• Enhanced compatibility with temperature-sensitive materials

This configuration is especially advantageous in industries like pharmaceuticals and specialty chemicals, where maintaining chemical integrity during milling is non-negotiable.

4. Discrete Pass Option: Flexible Process Control

Process flexibility is increasingly important in multiproduct facilities. The UM mill features a discrete pass option, enabling operation in either continuous circulation mode or controlled single/multiple pass processing.

Application Scenarios:

• Pilot-scale trials

• Product changeover validation

• High-value material processing

• Batch-controlled precision milling

This versatility allows operators to optimize process parameters such as residence time, bead size, and rotor speed depending on the material characteristics and production objectives.

5. Full Production Size Mill in a Compact Structure

One of the most striking characteristics of the UM high energy vertical bead mill is that it is six times smaller than conventional mills with equivalent production capacity.

Engineering Implications:

• Reduced plant floor space requirements

• Lower infrastructure investment

• Simplified installation and integration

• Enhanced energy efficiency

For modern production environments where space optimization and lean manufacturing principles are prioritized, this compact design provides measurable operational value.

6. Frequency Inverter Drive: Precision Speed Control

The UM series is equipped with a frequency inverter drive, allowing precise control over rotor speed and energy input.

Operational Advantages:

• Adjustable shear intensity

• Energy optimization per product type

• Reduced power consumption during partial loads

• Soft start/stop functionality for equipment longevity

Speed modulation is particularly important for preventing over-grinding and controlling thermal rise in sensitive formulations.

7. PLC-Based Automation Package: Intelligent Milling

Automation is no longer optional in advanced manufacturing. The UM high energy vertical bead mill integrates a PLC-based automation package, delivering process transparency and control.

Automation Capabilities:

• Real-time monitoring of temperature, pressure, and motor load

• Programmable milling recipes

• Data logging for quality traceability

• Remote diagnostics compatibility

This intelligent control architecture improves repeatability, reduces operator dependency, and aligns with Industry 4.0 production frameworks.

Rucca integrates automation expertise with mechanical precision, ensuring the UM mill meets both engineering and digital manufacturing standards.

8. Industry Applications

The UM high energy vertical bead mill is widely applicable across:

• Lithium battery materials (LFP, NCM, graphite)

• Nano coatings and functional pigments

• Printing inks and colorants

• Agrochemical suspensions

• Pharmaceutical suspensions

• Advanced ceramics and electronic materials

Its high energy density and flexible process configuration make it suitable for both R&D and full-scale industrial production.

9. Why Choose Rucca?

With decades of experience in dispersion and high-shear processing technologies, Rucca has engineered the UM high energy vertical bead mill to address real-world manufacturing challenges:

• Higher efficiency with lower footprint

• Intelligent automation integration

• Reduced operational costs

• Scalable performance from pilot to production

By combining mechanical innovation with process intelligence, Rucca delivers a solution that enhances both productivity and quality control.

Conclusion: Compact Engineering, Industrial Power

The UM high energy vertical bead mill is more than a grinding machine—it is a precision-engineered system designed to redefine efficiency, scalability, and automation in fine particle processing.

With its high energy density chamber, internal media recirculation, high flow rate product recirculation, discrete pass flexibility, compact footprint, frequency inverter drive, and PLC-based automation package, the UM mill stands as a powerful yet space-efficient solution for modern manufacturing.

In industries where particle size, dispersion stability, and operational reliability determine market success, the UM series from Rucca sets a new performance standard.
